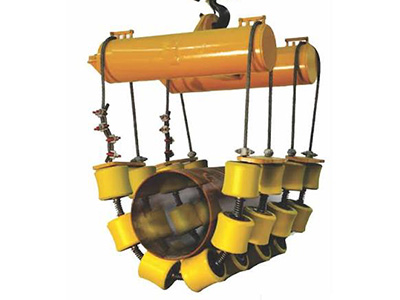

Polyurethane Cradle Roller for Pipe Lifting & Lowering Equipment

During critical stages of pipeline installation—particularly lifting, handling, and lowering-in operations—balancing high construction efficiency with reliable pipe protection is paramount. Steel pipes are typically coated with sensitive anti-corrosion layers. Direct contact with rigid metal handling equipment can easily cause scratching, peeling, or structural deformation.

This is why Polyurethane Cradle Rollers (PU Cradle Rollers) have become an indispensable core component in modern pipeline lifting, handling, and lowering-in equipment. Combining superior load-bearing capacity with high wear resistance, polyurethane rollers ensure smooth pipe movement while providing ultimate safety protection for both the steel pipe and its anti-corrosion coating.

Key Performance Advantages of Polyurethane

Traditional rubber or steel rollers often fall short in heavy-duty pipeline operations. In contrast, polyurethane (PU) elastomers possess unique physical properties that make them the ideal material choice for cradle rollers:

Superior Pipe Coating Protection: Unlike rigid steel rollers, polyurethane offers high elasticity and dynamic cushioning capabilities. It effectively absorbs operational shocks, preventing scratches, gouges, or damage to delicate pipeline anti-corrosion coatings during lowering-in or transport.

Exceptional Load-Bearing Capacity: Combining the flexibility of rubber with the structural strength of rigid plastics, polyurethane can withstand heavy static and dynamic loads without permanent deformation—making it perfectly suited for heavy-wall, large-diameter steel pipe lifting.

Outstanding Wear & Weather Resistance: Pipeline construction sites present harsh environmental conditions. Polyurethane rollers deliver exceptional tear and abrasion resistance while withstanding oil, mud, sand, UV exposure, and extreme temperature fluctuations, far outlasting standard rubber rollers.

Low Rolling Friction Resistance: Formulated with optimized surface hardness, polyurethane rollers significantly lower friction. This ensures smooth pipe movement through cradle trolleys (Roller Cradles) and reduces the pulling load on sidebooms and lifting machinery.

Application Scenarios of Polyurethane Cradle Rollers

Heavy-duty polyurethane cradle rollers seamlessly integrate into a wide range of pipeline construction machinery:

Pipe Lowering & Lifting Operations: In cross-country oil and gas pipeline construction and municipal water projects, polyurethane rollers are essential components of pipe lowering-in cradles. During the process of hoisting large-diameter steel pipes and guiding them into the trench, the rollers support enormous loads while preventing damage to the external anti-corrosion coating.

Pipe Pulling & Guidance (HDD Pullback): In trenchless horizontal directional drilling (HDD) river or road crossings, long pipe strings require smooth ground pullback before being pulled through the borehole. Serving as support and guide rollers, polyurethane cradle rollers minimize rolling friction against the ground, ensuring a safe and smooth pullback process.

Offshore Pipelaying & Pipelay Vessels: On marine pipelay vessels and offshore platforms, polyurethane rollers are installed on stinger systems, tensioner lines, and pipe conveyors. They offer reliable support, guiding continuous pipe deployment while resisting seawater corrosion, harsh offshore environments, and intense mechanical wear.

Protecting Pipe Integrity and Maximizing Efficiency

Upgrading your pipeline lifting and lowering-in equipment with heavy-duty polyurethane cradle rollers is a cost-effective strategy to enhance jobsite safety, eliminate expensive coating repair costs, and maximize operational efficiency.

Whether outfitting sideboom roller cradles for cross-country oil and gas projects or designing custom pipe handling systems, high-quality PU rollers deliver the durability and protection your engineering projects demand. Contact us.
