Heavy-Duty Solid Polyurethane (PU) Welding Rotator Rollers

27 Feb 2026

Welding rotator roller highlights that solid polyurethane (Shore 90A-95A) is the industry standard for slip resistance and surface protection.

1. Driving Principle: Synergy Between Drive and Idler Rollers

A standard rotator set typically consists of four rollers arranged in a "2-Drive, 2-Idler" configuration:

Drive Roller: Driven by an electric motor and a Worm Wheel gearbox. It provides the necessary torque to rotate the workpiece via friction. The core is usually reinforced with a Steel Hub to withstand torque stress during startup.

Idler Roller: Lacking power, its sole purpose is to support and distribute the weight of the workpiece. These are typically equipped with heavy-duty Bronze Bushings or bearings to ensure smooth rotation under high loads.

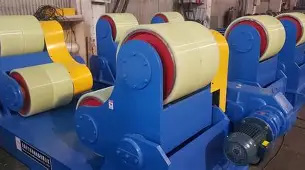

Heavy-Duty Solid Polyurethane (PU) Welding Rotator Rollers

2. Material Selection: Why Solid Polyurethane?

In heavy-duty manufacturing, Solid Polyurethane (PU) is the premier choice due to its balance of strength and protection:

High Friction (Anti-slip): Compared to all-steel wheels, PU rollers offer a higher coefficient of friction. When rotating stainless steel or aluminum tanks, they effectively prevent sliding, ensuring the weld seam passes the welding torch at a constant speed.

Workpiece Surface Protection: The inherent elasticity of solid polyurethane prevents indentations or scratches on the workpiece surface—a critical factor for vessels with high surface quality requirements.

Compression Resistance: High-quality polyurethane typically reaches a hardness of Shore 90A-95A, preventing "permanent flat-spotting" even under static pressures of several tons.

3. Maintenance and Care Recommendations

To extend the service life of the rollers and the entire system, focus on these three areas:

Focus Area	Recommendation
Alignment & Concentricity	The drive and idler frames must be perfectly parallel. Misalignment causes axial drifting, leading to severe shear wear on the roller edges.
Thermal Protection	Welding heat and spatter are the primary enemies of PU. Use heat shields during operation to prevent molten metal from scorching the roller surface.
Paired Replacement	If one drive roller is heavily worn, replace both drive rollers simultaneously. A diameter difference of >1mm causes uneven force distribution, accelerating wear on the internal worm gear.

Consultation & Replacement:

If your current rollers are experiencing debonding, slipping, or surface cracks, feel free to send us a sample or provide your dimensions. We offer free professional upgrade and replacement solutions.
