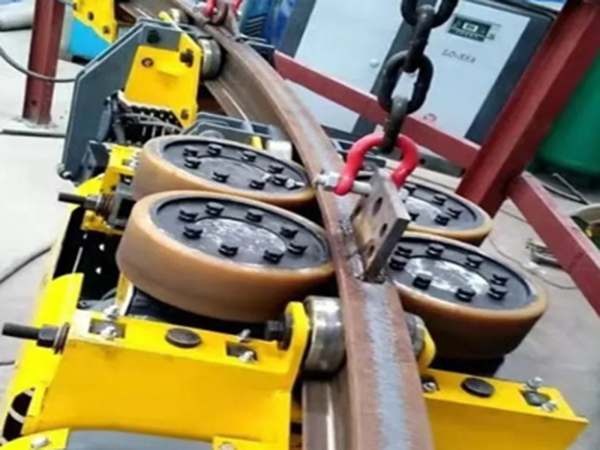

D400×348×100mm Monorail Locomotive Drive Wheel

In modern coal and underground mining auxiliary transport systems, explosion-proof diesel monorail locomotives and battery-powered monorail transport systems have become the backbone of underground transportation due to their strong climbing capability, fast running speed, and high safety factor. Within these flameproof and intrinsically safe drive systems, the core component that directly frictions with the steel rail and bears the traction output of the entire vehicle is the drive wheel.

This article will delve into a common high-performance specification in the industry—the D400×348×100mm monorail drive wheel—to analyze its structural designation, core materials, technical advantages, and maintenance essentials under explosion-protected hazardous environments.

In-depth Decoding of Specification Parameters

For technical personnel, the numbers D400×348×100mm precisely outline the geometric profile and design boundaries of the drive wheel:

1. Outer Diameter 400mm: The nominal outer diameter of the drive wheel. A larger diameter helps increase the contact area with the I-beam steel rail (such as I140E or I140V), providing higher travel speeds at the same rotational speed and effectively reducing compressive stress on the wheel surface.

2. Inner Diameter / Steel Core Outer Diameter 348mm: Refers to the outer diameter of the internal metal hub (steel core). This means the thickness of the outer elastic cladding layer (usually polyurethane) is approximately 26 mm. This thickness is rigorously calculated to provide sufficient cushioning elasticity while preventing excessive deformation under heavy loads.

3. Width 100mm: The width of the drive wheel tread. The wide bandwidth guarantees sufficient grip, enabling the drive motor's torque to be efficiently converted into forward or upward traction, which is particularly advantageous on steep slopes.

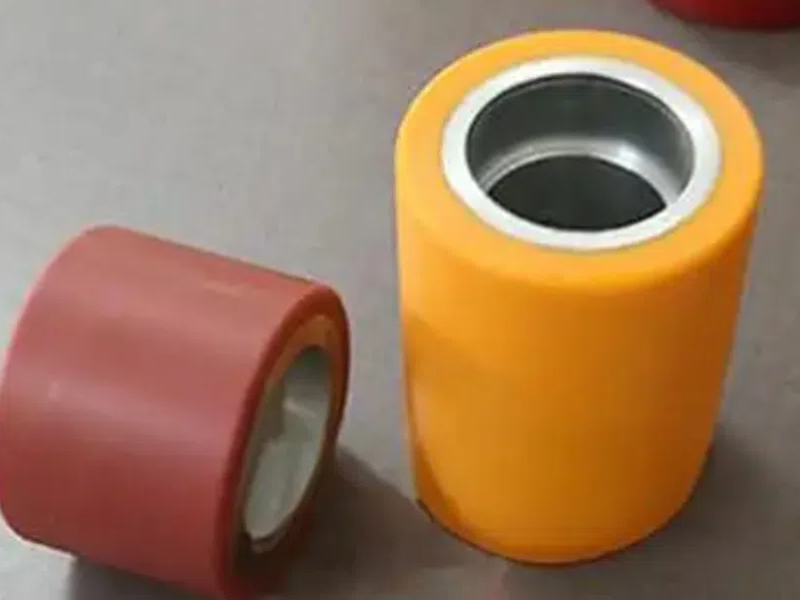

Core Technology: High-Performance Polyurethane Elastomer

The underground working environment for monorail cranes is extremely harsh, accompanied by moisture, coal dust, oil contamination, and clamping forces up to several tons. Therefore, to ensure increased safety and prevent any sparking risks during heavy-load friction, the outer layer of the D400 drive wheel is invariably cast from special polyurethane (PU) elastomer.

Compared to traditional rubber or metal wheels, polyurethane offers the following irreplaceable characteristics:

1. High Wear Resistance: The wear resistance of polyurethane is 3 to 5 times that of natural rubber, which greatly extends the service life of the drive wheel under frequent start-stop and slipping conditions.

2. High Friction Coefficient & Anti-Static/Flame-Retardant Properties: On wet or even water-dripping steel rail surfaces, the special polyurethane can still maintain a high friction coefficient (usually 0.28). More importantly, for explosion-proof applications, the formulation includes anti-static and flame-retardant agents to eliminate static electricity accumulation.

3. Tear and Oil Resistance: Hydraulic oil and lubricants inevitably leak underground. This material possesses excellent resistance to oil solvents and is not prone to chipping or chunking under severe friction, preventing metal-to-rail contact that could cause non-sparking design failures.

Core Application Advantages

In actual underground operations, this specification of drive wheel demonstrates excellent performance characteristics:

Conclusion

Although small in size, the D400×348×100mm monorail drive wheel carries the safety and efficiency of the entire mine logistics lifeline. Through the perfect combination of a high-quality steel core and cutting-edge polyurethane materials, it provides surging and stable forward power for explosion-proof monorail locomotives in dark, damp underground tunnels. Selecting a drive wheel with superior craftsmanship and certified explosion-protected reliability is an inevitable choice for every mining enterprise pursuing efficient and safe production.
